860 MiniZapr UVC Sterilizer For Indoor Applications
Utilizing technology from the larger 850 GreenZapr outdoor sterilizer, the 860 MiniZapr UVC Sterilizer was designed. The 860 MiniZapr UVC Sterilizer deploys the same bacteria and virus-fighting power needed to control today’s harmful microorganisms such as MRSA, Staph, C. diff, HIV, Influenza (H1N1). Germicidal UVC is a proven technology and has been used for more than 100 years.

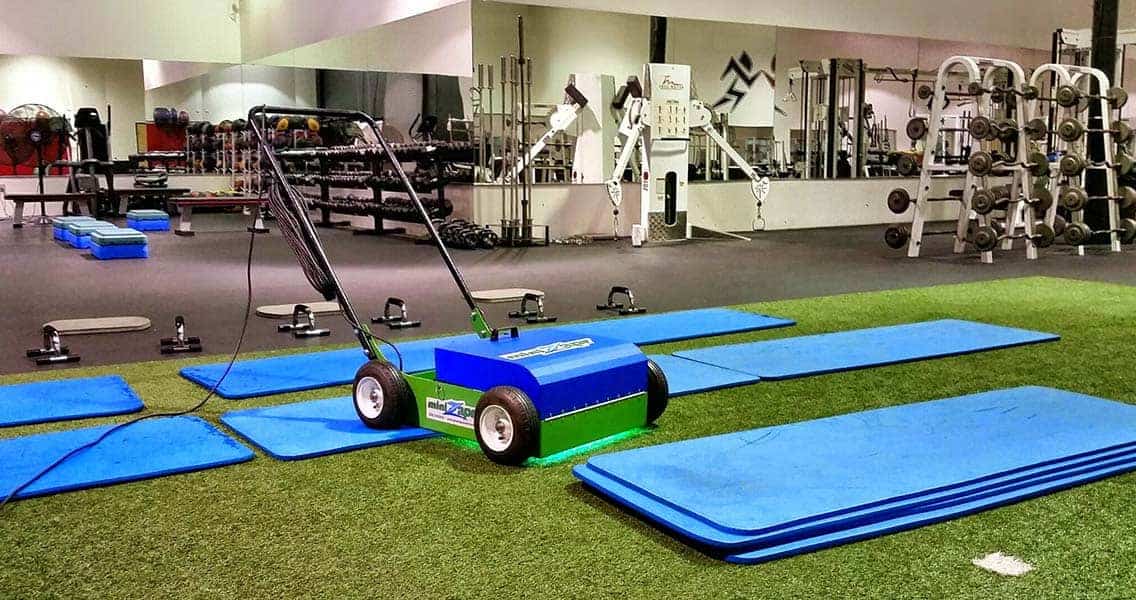

Power options for the 860 MiniZapr UVC Sterilizer can be plugged into an ordinary wall outlet or powered by an optional generator. With its eight, proprietary, shatter-proof UVC bulbs are designed to emit the needed energy dosage to destroy the DNA of harmful microorganisms. The mobile 860 MiniZapr can indoor sterilizer has many applications. Locker rooms, wrestling mats, equipment rooms, weight rooms, and shower areas are a few areas the 860 MiniZapr can be used.
Target Levels of UVC Energy
Each harmful microorganism has a different level of sensitivity to UVC radiation. Some harmful microorganisms require only a small amount of UVGI to break apart their DNA. While other harmful microorganisms require more UVGI. In order to use UVGI to effectively sterilize surfaces, the operator must understand the exposure levels required. The intensity of the UVC light source, the distance from the light source to the target surface and the length of time required for optimum exposure.
Two Operational Methods of Use
The 860 MiniZapr UVC Sterilizer has two distinct modules: the base unit and the handheld. The base unit is designed to operate 2.5″ from the target surface and uses 8 specifically designed UVC lamps to generate 6,874 µJ/cm² of energy assuming a standard walking speed of 2 mph and 3 passes. The handheld module requires the operator to control all aspects of exposure such as speed, distance, and the number of passes. Assuming most users will use the handheld unit approximately 2” from the target surface, at a speed of 0.5 feet/s and in 2 passes, an energy dose of 7,350 µJ/cm² is reached.
In essence, greater exposure time delivers a higher dose of energy. However, the variables contributing to UVGI exposure dosage are as follows:
860 MiniZapr UVC Sterilizer Base Module – Calculations for Various Operational Speed/Passes for Energy Exposure
| Module/Cart Speed (mph) | 2 | 1 | 2 | 1 |
| Passes over field | 3 | 3 | 2 | 2 |
| Peak Exposure @ 2.5” (µW-s/cm²) | 11,125 | 11,125 | 11,125 | 11,125 |
| Total CALCULATED Dosage (µJ/cm²) | 6,874 | 13,748 | 4,583 | 9,165 |
MiniZapr 860 Handheld Module – Calculations for Various Operational Speed/Passes for Energy Exposure
| Module Speed (feet per second – fps) | .5 | .5 | .5 | .5 |
| Passes over field | 2 | 3 | 2 | 3 |
| Peak Exposure @ 2” (µW-s/cm²) | — | — | 4,410 | 4,410 |
| Peak Exposure @ 3” (µW-s/cm²) | 2,940 | 2,940 | — | — |
| Total CALCULATED Dosage (µJ/cm²) | 4,900 | 7,350 | 7,350 | 11,025 |
NOTE: The green highlighted columns represent the recommended basic operation.
Operational Requirements
The operational requirements of this system are flexible and operators can adjust their protocols to meet their needs. Operators may optimize the UVGI treatment system and design a regular treatment schedule that effectively targets microbes of particular concern. For the optimum results in any setting, the operator should be aware that a slower, deliberate delivery method delivers significantly higher levels of exposure and more effective germicidal efficacy. Of course, a higher germicidal efficacy provides greater confidence for sterility and safety.
Incident Energies of Germicidal Ultraviolet Radiation at 253.7 Nanometers (UVC) Necessary to Inhibit Colony Formation in Organisms (90%) and for 3-Log (99.9%) Reduction
Energy needed for kill factor Microwatt seconds per square centimeter | ||
| ORGANISM | 90% | 99.9% |
| Bacillus anthracis | 4,520 | 8,700 |
| Bacillus magaterium sp. (spores) | 2,730 | 5,200 |
| Bacillus magaterium sp. (veg.) | 1,300 | 2,500 |
| Bacillus paratyphusus | 3,200 | 6,100 |
| Bacillus subtilis spores | 11,600 | 22,000 |
| Clostridium difficile (C. diff) | 4,640 | 9,220 |
| Clostridium tetani | 13,000 | 22,000 |
| Corynebacterium diphtheriae | 3,370 | 6,500 |
| Eberthella typosa | 2,140 | 4,100 |
| Escherichia coli | 3,000 | 6,600 |
| Leptospira Canicola-infections Jaundice | 3,150 | 6,000 |
| Methicillin-resistant Staphylococcus aureus (MRSA) | 2,600 | 6,600 |
| Micrococcus candidus | 6,050 | 12,300 |
| Micrococcus spheroides | 1,000 | 15,400 |
| Mycobacterium tuberculosis | 6,200 | 10,000 |
| Neisseria catarrhalis | 4,400 | 8,500 |
| Phtomonas tumeficiens | 4,400 | 10,000 |
| Proteus vulgaris | 3,000 | 6,600 |
| Pseudomonas aeruginosa | 5,500 | 10,500 |
| Pseudomonas fluorescens | 3,500 | 6,600 |
| Salmonella enteritidis | 4,000 | 7,600 |
| Salmonella paratyphi-enteic fever | 3,200 | 6,100 |
| Salmonella typhosa-typhoid fever | 2,150 | 4,100 |
| Salmonella typhimurium | 8,000 | 15,200 |
| Sarcina lutea | 19,700 | 4,200 |
| Serratia marcescens | 2,420 | 3,400 |
| Shigella dysenteriae-Dyentery | 2,200 | 4,200 |
| Shigella flexneri-Dysentary | 1,700 | 3,400 |
| Shigella paradysenteriae | 1,680 | 3,400 |
| Spirillum rubrum | 4,400 | 6,160 |
| Staphylococcus albus | 1,840 | 5,720 |
| Staphylococcus aureus (Staph) | 2,600 | 6,600 |
| Streptococcus hemolyticus | 2,160 | 5,500 |
| Streptococcus lactis | 6,150 | 8,800 |
| Streptococcus viridans | 2,000 | 3,800 |
| Vancomycin resistant enterococci (VRE) | 3,200 | 7,000 |
| PROTOZA | 90% | 99.9% |
| Chiarella vulgaris (Algae) | 13,000 | 22,000 |
| Nematode eggs | 4,000 | 92,000 |
| Paramecium | 11,000 | 20,000 |
| VIRUS | 90% | 99.9% |
| Bacteriophage (E. coli) | 2,600 | 6,600 |
| Infectious Hepatitis | 5,800 | 8,000 |
| Influenza | 3,400 | 6,600 |
| Poliovirus-Poliomyelitis | 3,150 | 6,000 |
| Tobacco mosaic | 240,000 | 440,000 |
| YEAST | 90% | 99.9% |
| Brewer’s yeast | 3,300 | 6,600 |
| Common yeast cake | 6,000 | 13,200 |
| Saccharomyces carevisiae | 6,000 | 13,200 |
| Saccharomyces ellipsoideus | 6,000 | 13,200 |
| Saccharomyces sp. | 8,000 | 17,600 |
| MOLD SPORES | Color | 90% | 99% |
| Aspergillus flavis | Yellowish green | 60,000 | 99,000 |
| Aspergillus glaucus | Bluish green | 44,000 | 88,000 |
| Aspergillus niger | Black | 132,000 | 330,000 |
| Mucor racemosus A | White gray | 17,000 | 352,000 |
| Mucor racemosus B | White gray | 17,000 | 352,000 |
| Oospora lactis | White | 5,000 | 11,000 |
| Penicillium expansum | Olive | 3,000 | 22,000 |
| Penicillium roqueforti | Green | 13,000 | 26,400 |
| Penicillium digitatum | Olive | 44,000 | 88,000 |
| Rhisopus nigricans | Black | 111,000 | 220,000 |
Contact us for more information
| MiniZapr 860 UVC Sterilizer For Indoor Applications Specifications | |
|---|---|
| Model | 860 |
| Main Frame | 12 ga steel |
| Handle | One piece 1 inch round tube with height adjustment |
| Length | 31.5 inches |
| Width | 19 inches |
| Weight | 105 lbs. |
| Running Gear | 4 pneumatic tires (280/250-4) Ribbed 4-ply with bearings |
| Light Modules | 1 Static 8 UVC bulb module w/ LED indicators and hour meter 1 Detachable 2 UVC bulb module w/ 25’ power cord |
| UVC Bulb | 10 @ 5.3-watt slimline, hard quartz glass lamp envelope with FEP shatter-proof coating and waterproof sure seal lamp socket connection |
| Power Source | 1000 watt Honda gas generator OR 50’ cord for use with standard wall outlet |
| Finish | Powder coat with 6-step pre-wash including degreaser and anti-rust coating |
| Shipping Crate | 40” x 48” x 24” |
| Crated Weight | 170 lbs. |
| General Description: The 860 MiniZapr sterilizes all hard surfaces with institutional settings, including counters, tables, handrails, floors, cabinets, drawers, sinks, toilets, and bath/showers. This is accomplished with powerful germicidal UVC light. Harmful microorganisms such as MRSA, HIV, C-Diff, Staph, and Influenza are eradicated through DNA destruction, eliminating the potential for “superbugs.” Reliable on-board power via generator or use of 50’ cord and standard wall outlet, provide the most efficient, cost-effective sanitation method available in the industry. | |
Protect Athletes From Staph and MRSA
